Futuremark 3DMark06 benchmark test

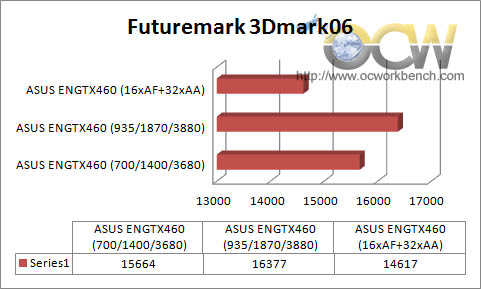

The default GPU/Shader/Memory clock is 700/1400/3680. The test is done at 1920×1080. At the default speed, the benchmark scored 15664. Although not a high score, this score is comparable to a Radeon 5830. In fact, we are more interested in how well this card overclocks. With a voltage bump to 1.087v using the ASUS utility provided. Unfortunately, the smartDoctor limits our overclock to 800MHz. We paired it up with MSI Afterburner and overclock the the GPU CLK to beyond 900MHz to 935MHz. Likewise the shader clock is increased to 1870MHz. The GDDR5 is also increased to 3880MHz. With the overclocked GPU/SHADER/MEM, we get a boost of 4% in performance.
We also applied full AA/AF combination to the card using ForceWaqre 258.96 and it able to achieve 14617.
