Mainboard Layout
This is how the board looks like this. The mainboard has a PCIe x4 slot, 4 SATA 6Gbps ports on board. At the rear we can see the different chipsets that take charge of the audio, USB 3.0 etc. At the centre of the board are two chips the APU and the FCH. On the bottom we can see two DDR3 slots which is capable of supporting DDR3-1333.

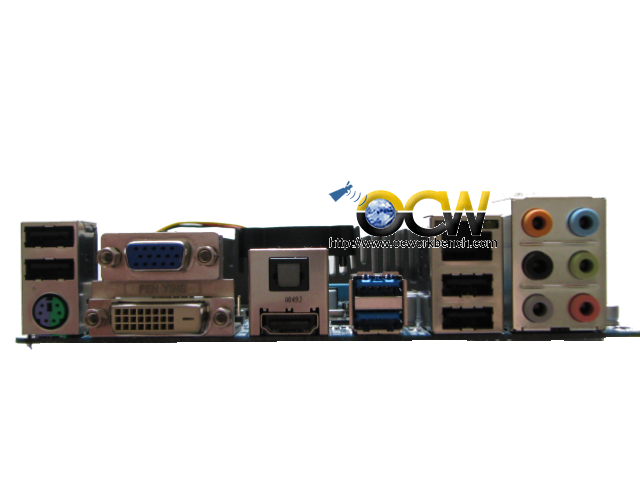

On the rear, we can see 4 USB 2.0 ports, 1 PS/2 Mouse or Keyboard conenctor. D-SuB, DVI-D, HDMI, SPDIF digital out, 2 USB 3.0 and audio ports.
