AMD Fusion Board – Gigabyte E350N-USB3
bluetooth 26 Jan 2011
AMD has been busy with developing the APU for some years. With Intel releasing it’s latest H67 processors with embedded graphics, AMD’s game plan is to tackle it’s competitor from bottom up, e.g. low processor speed high performance graphics at a good price point.
Today, we take a quick preview at the Gigabyte E350N-USB3 board based on this new architecture.

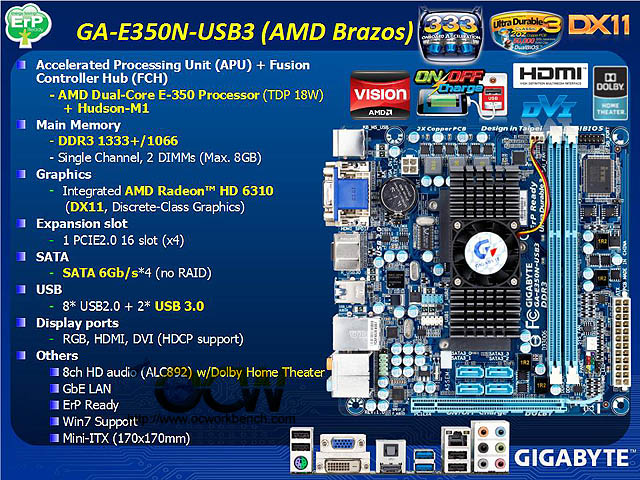

Known as the AMD brazos, the GA-E350N-USB3 comes with an APU and the Fusion Controller HUB (FCH). The APU integrates a CPU and a graphics processor inside one unit. The embedded graphics is a DX11 AMD Radeon HD 6310 class graphics. The mainboard supports only 2 DIMMs running single channel memory architecture of up to 8GB of DDR3-1333(OC)/1066.
As this board is meant to be a low power deskbook, it only has a TDP of only 18W, making it a direct competitor to the Atom processors from Intel.
Other specifications of this board include 1 full length PCI e 2.0 slot running at PCIe x4. On board 8 USB 2.0 and 2 USB 3.0 (NEC) ports, SATA 6Gbps x 4.3 display ports D-SUB, HDMI and DVI-D. The audio uses Realtek ALC892 w Dolby home theatr
