890GX Extreme3

  1. Six-Core CPU Ready
  2. ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
  3. Advanced V8 + 2 Power Phase Design, supports CPU up to 140W
  4. Supports UCC feature (Unlock CPU Core)
  5. Supports Dual Channel DDR3 1800(OC)
  6. Supports ATI™ Quad CrossFireX™, 3-Way CrossFireX™, CrossFireX™ and Hybrid CrossFireX™
  7. Integrated AMD Radeon HD 4290 graphics, DX10.1 Class iGPU, Shader Model 4.1, Max. shared memory 512MB
  8. Built-in 128MB DDR3 1333/1200MHz SidePort Memory
  9. Multi VGA Output options: D-Sub, DVI-D and HDMI
  10. 1 x eSATAIII Connector, 6 x SATA3 6.0 Gb/s connector, 2 x USB 3.0 Ports, 2 x IEEE1394 Ports
  11. ErP/EuP Ready, Dr. Debug
  12. Smart Swith Design : Power / Reset / Clear CMOS Switch with LED
  13. Turbo 30 GPU Overclocking
  14. Supports ASRock Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, Multi-Speed Fan Control
  15. 7.1 CH HD Audio (VT2020 Audio Codec with QSound), 110dB & Premium Blu-ray audio support
  • Free Bundle: CyberLink DVD Suite – OEM and Trial; Creative Sound Blaster X-Fi MB – Trial
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Features

ASRock UCC

UCC (Unlock CPU Core) feature simplifies AMD CPU activation. As long as a simple switch of the BIOS option “Unlock CPU Core”, you can unlock the extra CPU core to enjoy an instant performance boost.


more…

ASRock True333

ASRock True 333 motherboard series offer the unmatched performance with the onboard acceleration of the latest USB3.0 with advanced 10X faster speed; SATA3 technology supports up to 12Gbps data transfer speed (via RAID 0), and the most convenient connectivity of eSATA3 devices. To enjoy a completely true computing, ASRock True 333 series motherboards can run the PCI-E for VGA card, SATA3 and USB 3.0 at full speed together simultaneously.

more…

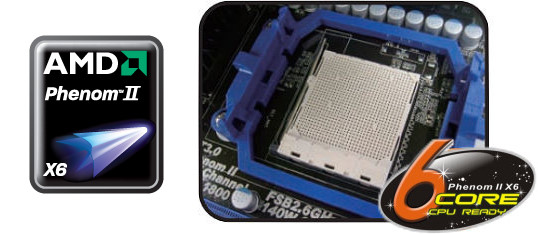

Six-Core CPU Ready

Smart Switch Design

Clear CMOS Switch

Power Switch

Reset Switch
EuP / ErP Reday

EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).

more…

Premium Blu-ray Audio

An outstanding technology developed on ASRock motherboard! It provides the excellent audio output of 24-bit/192 kHz with its respective Blu-ray DRM compatible driver/software.
more…

OC DNA

OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!more…

Intelligent Energy Saver

ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.

more…

Instant Flash

ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.

more…

ASRock Software Suite

ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users. The Sound Blaster X-Fi MB solution ensures you the premium audio quality, effects and features for PC systems equipped with onboard audio. For instance, the X-Fi CMSS-3D technology expands your stereo audio into surround sound via multi-channel speaker, stereo speaker or even headphone; the X-Fi Crystalizer technology restores the compressed sound source and can even let you hear every detail in riveting surround sound. Combined with the Creative user-friendly software and the ASRock high performance motherboard, you will be assured to enjoy a rich variety of programming and be entertained by a better way.

more…

Dr. Debug

Dr. Debug helps you to diagnose the BIOS POST status of your system.

Heatpipe Design

Heatpipe with fan design for CPU power Mosfet

AMD Radeon HD 4290 DirectX 10.1 Onboard Graphics

Key features of DirectX 10.1 include an updated shader model, improved anti-aliasing support, more flexible data access, and tighter specifications for better applicationcompatibility.

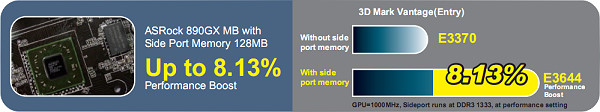

Side port memory 128MB

Boost performance up to 8.13% which is rarely seen on other 890GX boards.
