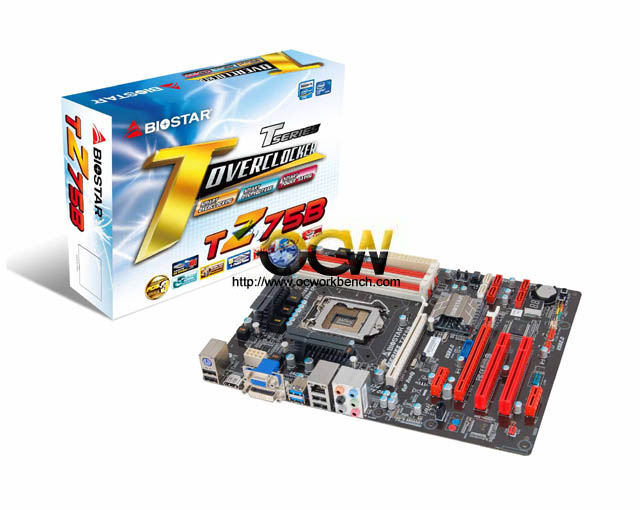

Universal Intel Z75 based BIOSTAR TZ75B Motherboards

BIOSTAR, a world famous manufacturer of motherboards, graphics cards, industrial computing systems and peripherals, starts the delivery of the BIOSTAR TZ75B Motherboard fulfilled in the ATX form-factor and positioned as an ideal base for high-performance gaming desktop systems with optimal costs.

The TZ75B board is based on the latest Intel Z75 chipset manufactured using the 22-nm processor using tri-gate transistors. The single-chip Intel Z75 natively supports USB 3.0 and is compatible with the new LGA 1155 third-gen Intel Core i7, i5 and i3 CPUs (Ivy Bridge) with TDP up to 95W retaining the back compatibility with the second-gen Intel Core CPUs (Sandy Bridge).

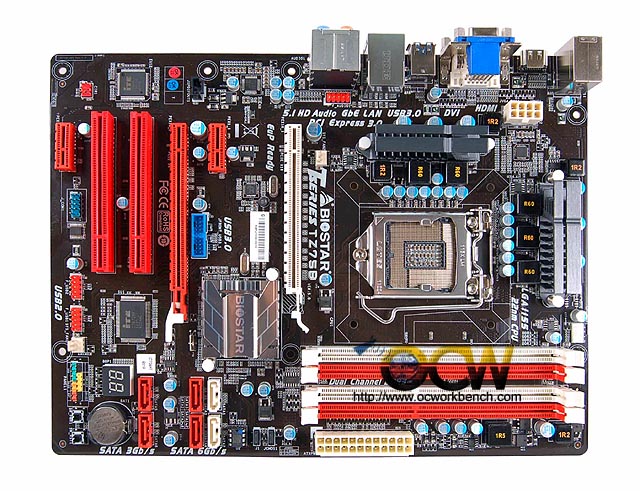

The TZ75B board has four DDR3 DIMM slots and supports up to 32GB dual-channel DDR3 1600/1333/1066Mhz RAM and overclocking DDR3 2133/1866 MHz RAM. The expansion slots include one PCI-E x16 2.0, two PCI-E x1 2.0 and two PCI slots for peripherals. The Intel Z75 chipset delivers an integral support for two SATA3 6Gbit/s and four SATA2 3Gbit/s ports allowing for arranging SATA RAID 0, 1,5,10 arrays. The board also features three USB 3.0 ports and six USB 2.0 ports. The speedy 10/100/GbE LAN interface on the Realtek RTL8111E delivers a high speed for local and external network resources. High quality HD sound is delivered by the 8-channel Realtek ALC892 codec.

The integrated graphics core with the support for new display technologies including DirectX 11 and HDMI 3D Visual for stereoscopic content delivers high performance in most graphics apps and games without external discrete graphics. The board features all popular video output interfaces including digital HDMI and DVI port with the HDCP technology and an analog VGA port. The PCI-E x16 3.0 port delivers even higher performance with a discrete card including multichip ATI CrossFireX solutions.

The TZ75B boards are produced on the most up-to-date production line using reliable components and latest technologies for the best stability and long-term operation. The TZ75B boards use high-quality solid capacitors with a 6-phase regulating system. The board also supports the new BIOS with the Unified Extensible Firmware Interface (UEFI BIOS) which delivers flexibility and simplicity of tuning thanks to a clear graphics interface.

Like all modern BIOSTAR boards, the TZ75B comes with the maximum suite of utilities for simple tuning, overclocking and running. The universal T-overclocker Windows utility is a combination of several powerful tools for fine system tuning and tuning performance of a CPU, memory, fan speeds, etc. The BIOSTAR G.P.U (Green Power Utility) lowers power consumption at a light CPU load. Besides, the TZ75B board supports the BIOS-Flasher, BIOS-Relife and BIOS Online Update for transparent operation and updating I/O system, the Charger Booster technology for faster charging of mobile devices via USB, and the BIO-Remote2 technology for remote control of PC’s multimedia features using Android and Apple gadgets.
