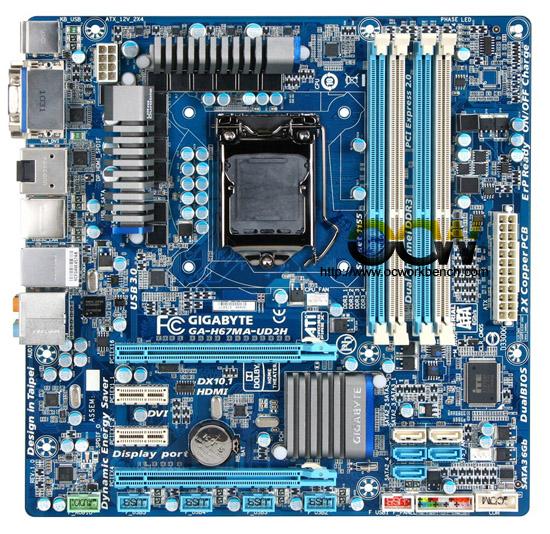

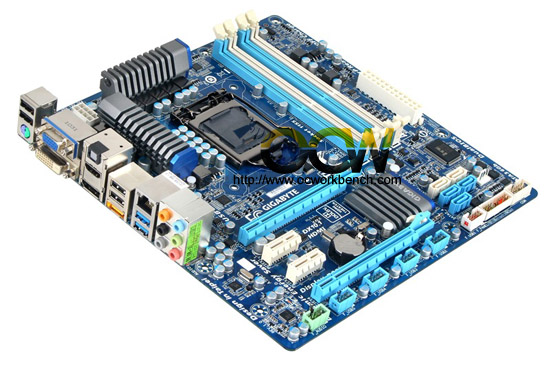

H67MA-UD2H





Features:
1.      Onboard SuperSpeed USB 3.0 and SATA 6Gbps to deliver impeccable data transfer speeds.
2.      GIGABYTE Ultra Durable™ 3 design with 2x Copper PCB to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today’s most demanding applications and games.
3.      Unique GIGABYTE 3x USB Power design with On/Off Charge USB ports to offer faster battery charging for iPhone, iPad and iPod devices.
4.      Intel® HD Graphics enabling incredible desktop media and immersive 3D experience.
5.      HDMI/DVI/DisplayPort digital graphics interface to deliver smoother HD video playback.
6.      CrossFireX™ support for ultimate graphics performance.
7.      GIGABYTE patented DualBIOS™ technology delivering the highest level of failure protection.

Brief Specifications:
CPU Support: LGA 1155 Intel® 2nd Generation Core Processors
Chipset: Intel® 6-series Chipset
Memory:  4 DIMMs
Dual Channel DDR3 2200 / 1600 / 1333 / 1066 / 800
Expansion slots: 2* PCI-e x16 ( 1×16 + 1×4)
    2* PCI-e x1
Storage:  4* SATA 3Gbps , 2* SATA 6Gbps
         2* USB 3.0, 14* USB 2.0
VGA Output: 1* D-Sub, 1* DVI, 1* HDMI, 1* Display PortAudio: 8-Channel Audio
LAN: 1GbE PCI-e
Form Factor: m-ATX
Others: DualBIOS™, Dual CPU Power, Ultra Durable™ 3, On/Off Charge, 3x USB Power, DVI / HDMI/ Display Port.
