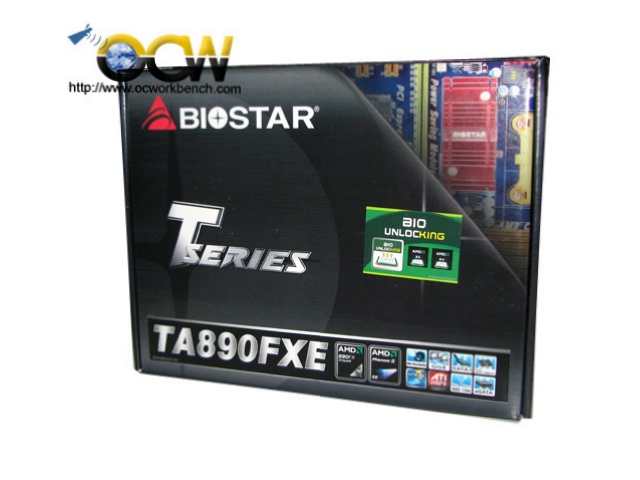

Introduction to BIOSTAR TA890FXE AMD 890FX+SB850 Mainboard
Bluetooth 22 May 2010

If you prefer boards that doesn’t come with integrated graphics, the BIOSTAR TA890FXE based on the AMD 890FX + SB850 board might suit your needs.

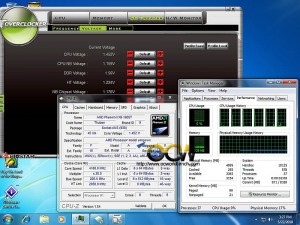

This board powered by AMD 890FX chipset supports Socket AM3 processors AMD Phenom II / Athlon II processor  AMD Mutil Core(x6,x4,x2) up to 140W. It also has 4 DIMM that support DDR3-1800(OC)/1600(OC)/1333/1066. There are 6 SATA 6Gbps ports supported by the South bridge SB 850. With 4 PCIe full length slots, this board supports ATi CrossFireX. There is also on board 1394 and eSATA3. Most importantly, this board has BIO-unlocKING technology enables the ACC function on AMD processors and unlock extra 3rd or 4th core with a super-simple click on your keyboard e.g. Phenom II 550BE to quad core or Phenon II X4 960T to 6 cores.

For system stability, BIOSTAR TA890FXE has a 2-phase independent power design to increase memory voltage stability and durability. It also uses Armour plated Biostar Technology, all the capacitors have been put with 100% Solid Capacitors , providing linger lifecycle, durability and stability for the crucial components. BIOSTAR G.P.U (Green Power Utility) is a new function, it will enhance energy efficiency by disabling extra phases while CPU on light loading. It integrated a friendly GUI to monitor what’s your CPU resourcing, response and optimized the power saving on your system. Such as Heavy 3D Gaming, Internet or MSN charting, G.P.U will always arrange the best power efficiency in your system.
