ASRock H67M-GE/HT Intel H67 board full review Exclusive @ OCWorkbench

Pictures of the mainboard

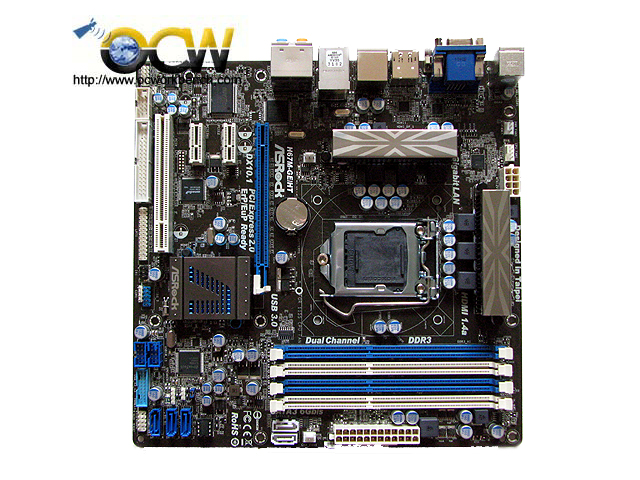

The ASRock H67M-GE/HT mainboard is a mATX board that will surpass HTPC users requirements. From the picture, we can see that the board comes with 1 PCI, 2 PCIe x1 and a PCIe 2.0 x16 slot for external graphics cards if required. Behind the PCI slot is the Realtek ALC892 audio codec and I/O chip. Next to it is Etrontech USB 3.0 controller and the Realtek RTL8111 GbE controller on it’s right. Behind the D-SUB and HDMI are ASmedia controller for display.

At the left bottom of the board, we can see the chipset attached with a passive heatsink. There is another Etrontech controller for the front USB 3.0 connector. There are three blue SATA 3.0Gbps conenctor and 2 white SATA 6Gbps connectors. To the right we can see the 4 DIMM slots supporting Dual Channel DDR3-1333. Nxet to the CPU socket are 2 sets of holes, one for LGA1155/1156 and the other is for supporting the older LGA775 socket heatsinks.

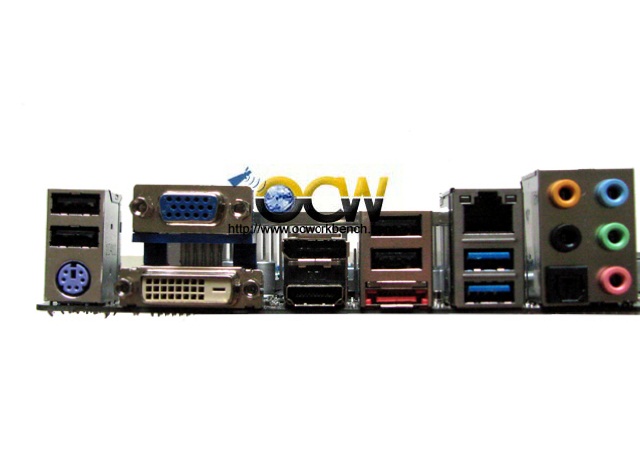

The back panel comes with PS/2 Keyboard, 4 USB 2.0 (black), 2 USB 3.0 (Blue), DVI-D, D-SUB, HDMI, DisplayPort, eSATA, GbE and audio ports (digital SPDIF)
