Crosshair IV Extreme Pushes AMD Performance with Multi-GPU CrossLinx 3 Technology

Innovative features from ASUS Republic of Gamers Guarantee Better Performance through Overclocking

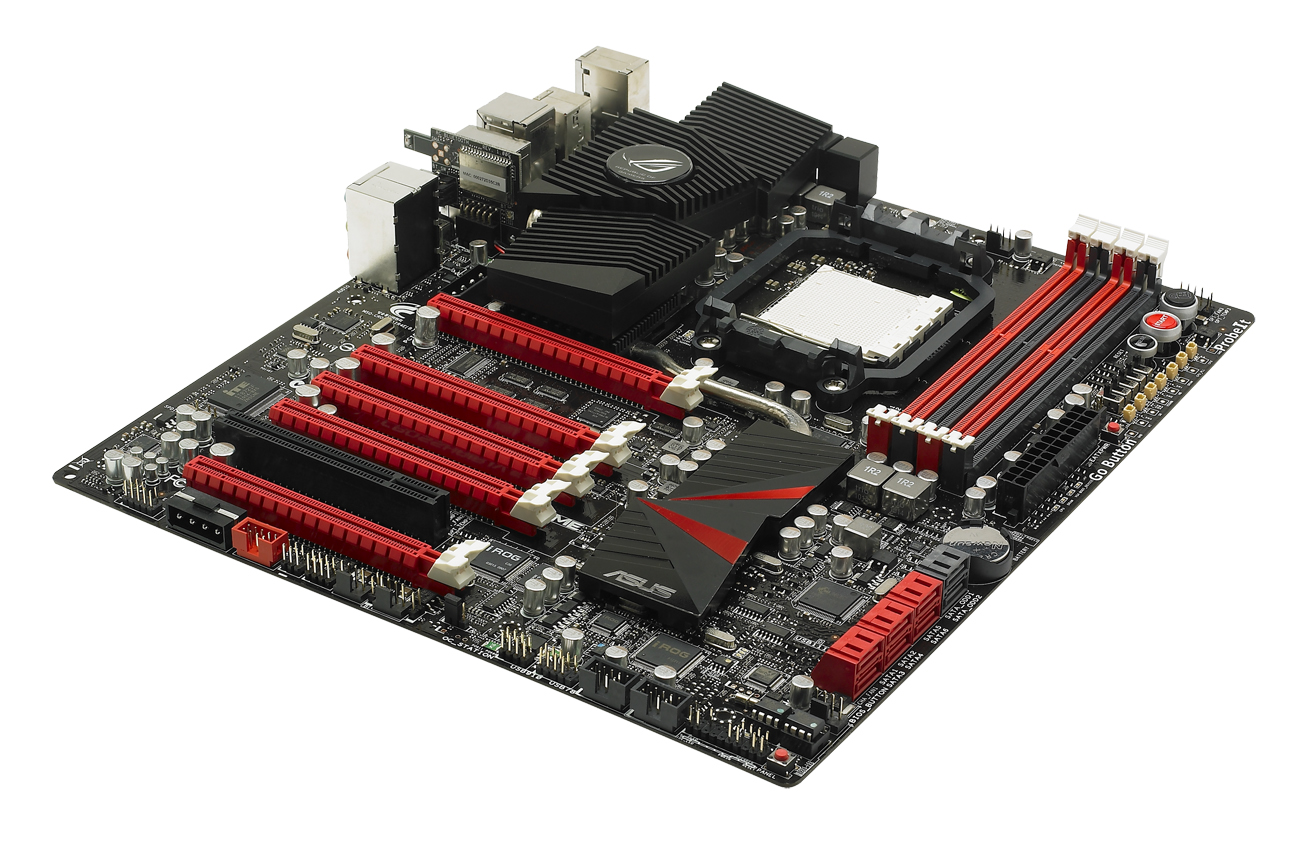

The new Crosshair IV Extreme from ASUS’ Republic of Gamers brand delivers compatibility with some of the fastest processors available through the AMD890FX chipset. It further ships with CrossLinx 3 technology, which enables multi-GPU usability with graphics cards from different vendors and generations. The new motherboard also comes with a slew of user-friendly overclocking features, including ROG Connect, RC Bluetooth and ROG iDirect.

Right click to download image

Graphics Card Flexibility

With CrossLinx 3 technology, Crosshair IV Extreme users gain the ability to mix and match multiple graphics cards from both NVIDIA and ATI, including models of different GPU generations. This technology uses the Lucid HYDRALOGIX engine, which bridges various graphics cards to enable their simultaneous usage. By removing compatibility hurdles, CrossLinx 3 makes it possible to experiment with different configurations of graphics cards for maximum performance.

On Crosshair IV Extreme, a unique layout design features a total of five PCI Express expansion slots. Two provide dedicated native graphics card support for either a single GPU or two in CrossFire configuration. The additional three feature Lucid HYDRALOGIX and CrossLinx 3 technologies, which enable a mixture of graphics cards from different vendors and generations, with a total of four detectable and working at once. Users keen on tuning their system gain greater freedom to do so with the unprecedented five PCI Express slots, and the technology maintains optimized performance whether in single or multiple-GPU arrangements.

Revolutionary User Control

Crosshair IV Extreme continues ROG’s established tradition of extreme performance, bringing much needed hardcore overclocking capabilities to the AMD side of the market. It ships with a full range of performance features, starting with ROG Connect, which enables pure hardware-level tweaking through USB from a remote notebook PC.

RC Bluetooth accesses a host of board, memory and CPU overclocking parameters from any Bluetooth-enabled device, while ROG iDirect introduces PC tuning from iPhone. This adds convenience and style to overclocking, a practice that used to be exclusive and cumbersome to get into.

These features simplify overclocking without compromising results, so that any user, novice to hardcore, can tap the full potential of Crosshair IV Extreme and related hardware with minimum difficulty and for maximum gain. All have been designed with direct feedback from the PC performance community taken into consideration.

Specifications

Model

ROG Crosshair IV Extreme

CPU

AMD socket AM3 Phenom™ II/Athlon™ II/ Sempron™ 100 Series Processors

Chipset

AMD® 890FX / SB850

Memory

DDR3 2000(O.C.)/1866 (O.C.)/ 1800 (O.C.)/ 1600(O.C.) / 1333 / 1066 MHz memory 4xDIMM, max. 16GB

Expansion Slots

*5x PCIe2.0 x16 slots (dual @ x16, triple @x16 , quad@x16 x16 x8 x8)

1 x PCI 2.2

Multi-GPU

Support HYDRALOGIX / ATI CrossFire™X Technology

Storage

– 6 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 (Red)

– 2 x SATA 3Gb/s ports (Gray)

– 2 x External SATA 3Gb/s ports at rear (SATA On-the-Go)

Bluetooth

Bluetooth V2.0/V2.1+EDR accessories card

RC Bluetooth ON/OFF switch

LAN

Intel® Gigabit LAN

Audio

8-channel High Definition Audio CODEC

IEEE1394a

2 x 1394a ports (1 port at back I/O, 1 port onboard)

USB

NEC® USB 3.0 controller – 2 x USB 3.0/2.0 ports at rear

AMD SB850 chipset – 13 x USB 2.0 ports

Form Factor

Extended ATX , 12”x 10.6” (30.5cm x 26.9cm)
