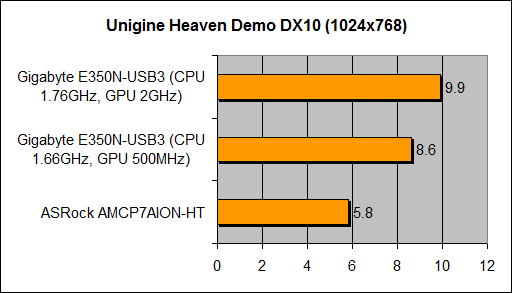

Unigine Heaven Demo DX10/DX11
The benchmark is tested at DX10 as it is unable to run on the ION 330 system. The Shaders is set to Low, Anistrophy to 1. As for DX11, shaders is set to low, tessellation set to normal and anistrophy =1, AA=off.
As we can see, the results are ahead of the ION 330 system by 2.8fps or 48%. It performed better when both GPU and CPU clock are adjusted up to 1.76GHz and 2GHz respectievly.
As for DX11 benchmark, the Gigabyte E350N-USB3 scored 2.7fps and 3.1 fps respectively for default and o/c state
