Components on board

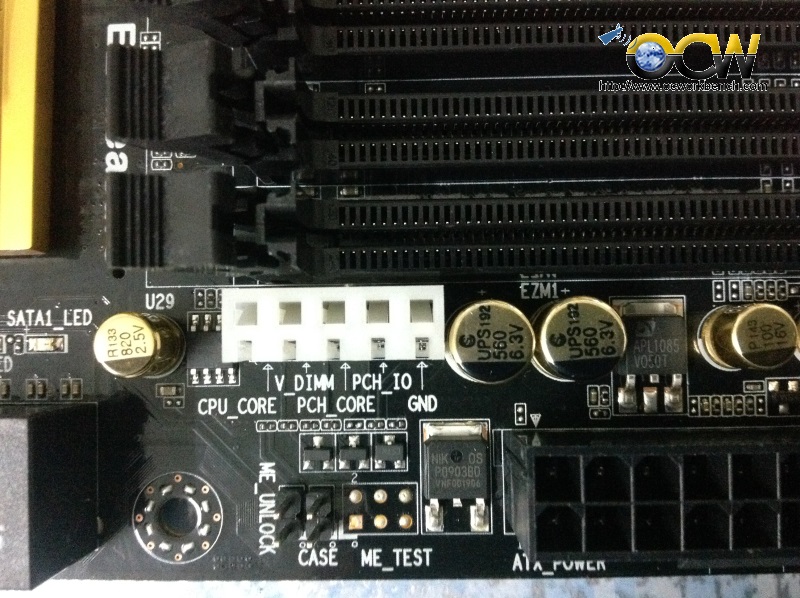

This is the pin out for measuring the CPU Core, Vdimm PCH Core PCH IO and GND. It is definitely a nice add on for overclockers to take readings off hand in real time.

IMG_0878 copy

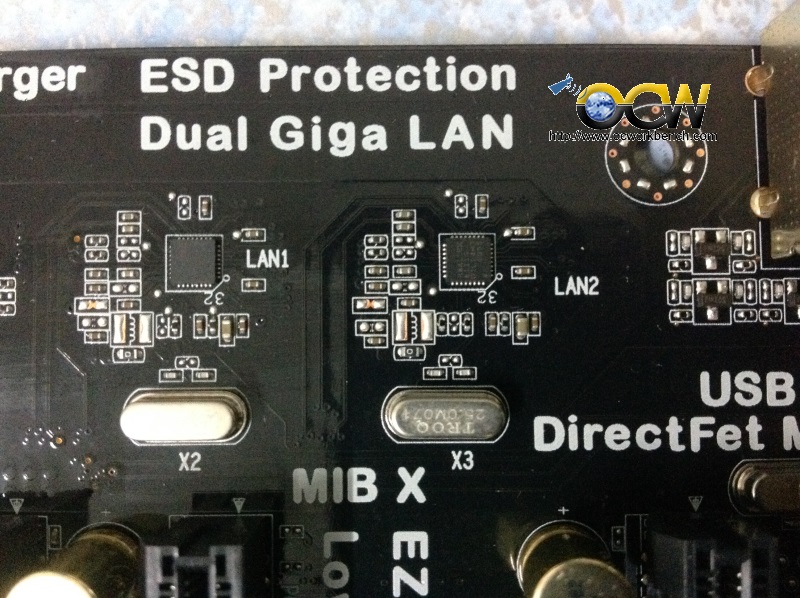

The chipset responsible for the dual Gigabit Ethernet


IMG_0876 copy

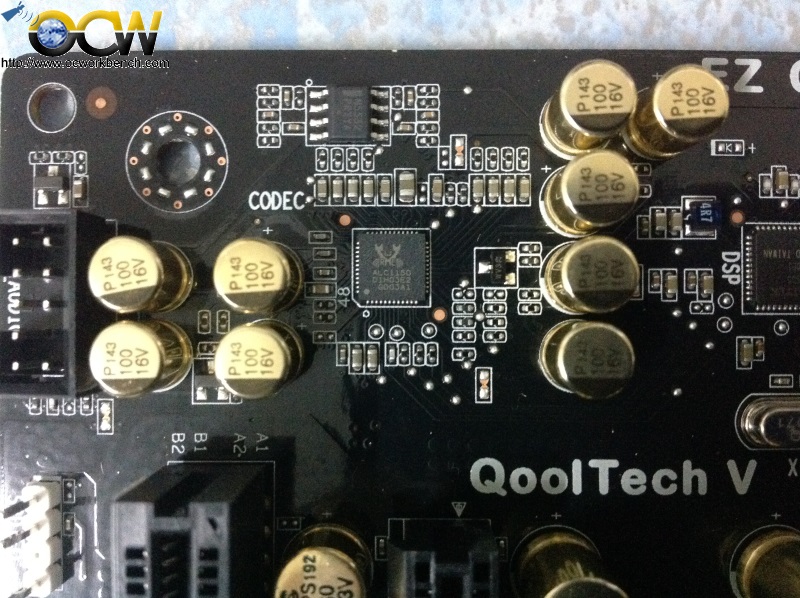

The audio codec Realtek ALC1150.

IMG_0872 copy

Over here we can see the ASmedia controller chip ASM1061 that controls the extra SATA 6Gbps ports.

IMG_0870 copy
