Detail Pictures of the motherboard
The motherboard uses a brown PCB with blue chipset heatsink and capacitors. It has 3 full length PCIe 2.0 slots which can be used for multi card CrossFireX. There is a single PCI slot and 3 PCIe 2.0×1 on board.

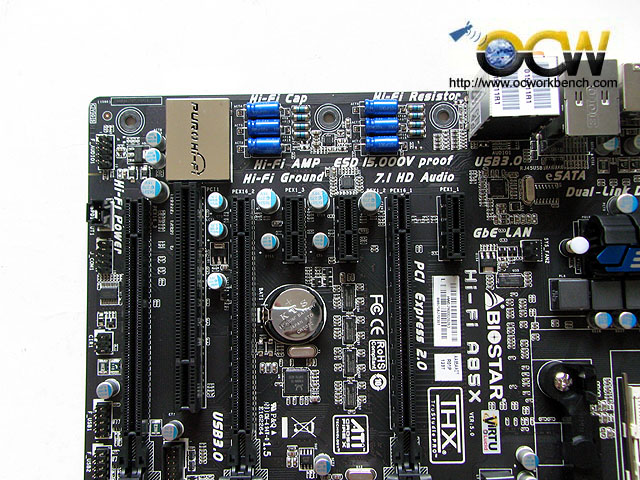

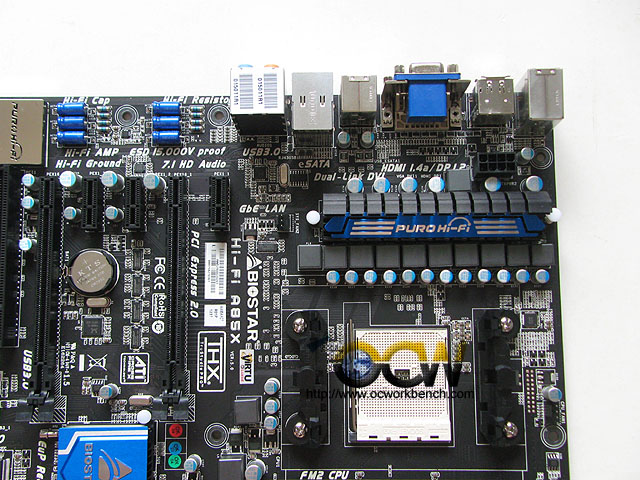

The top left corner of the motherboard is where the audio amps and resistors are found. In fact from the flip side, we can see the dedicated circuitry being used to ensure low noise. To the right are the various connectors on the backplane. The power connector, the mosfets etc. Below it is the Socket FM2 socket processor. Socket FM2 and FM1 are incompatible with each other.
Below it is the 4 DIMM slots that can work in DDR3-2400 (OC) in dual memory channel architeture. To it’s left is the heatsink attached to the A85 chipset.
The A85 chipset supports native SATA 6Gbps and USB 3.0. So there are no additional chipset on board.

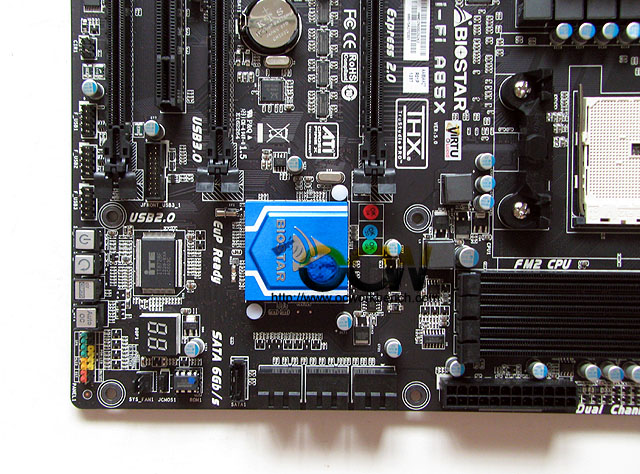

To the left is the power switch, reset switch, clear cmos switch and the auto oc. If the auto oc switch is pressed, it will run the CPU on higher speeds based on tested results. Of course, if you wish, you can use Toverclocker or the UEFI BIOS to fnie tune your APU.

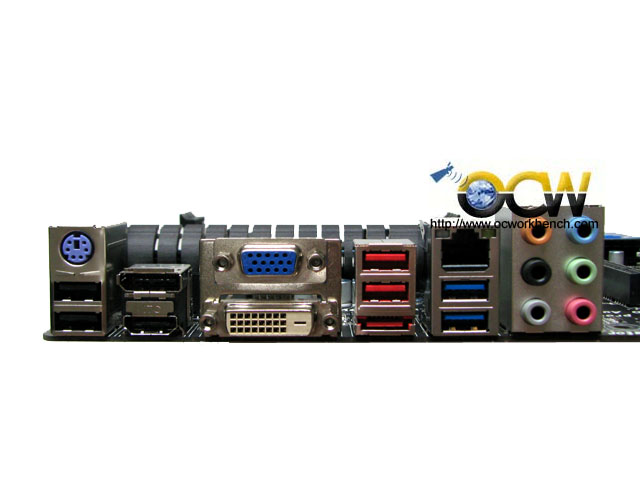

The backplane consists of PS/2 keyboard, 2 USB, 1 HDMI, 1 Display port, 1 D-SUB, 1 DVI-D, 2 USB 3.0, 1 eSATA 6Gbps, 2 USB 2.0, GbE and 8 ch audio ports.
