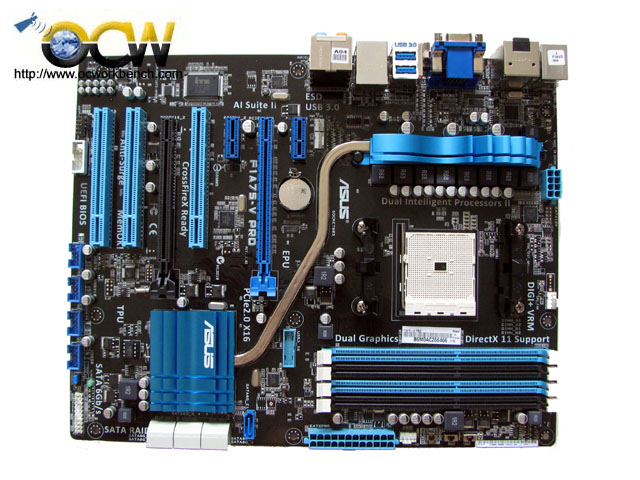

Mainboard Layout of ASUS F1A75-V Pro

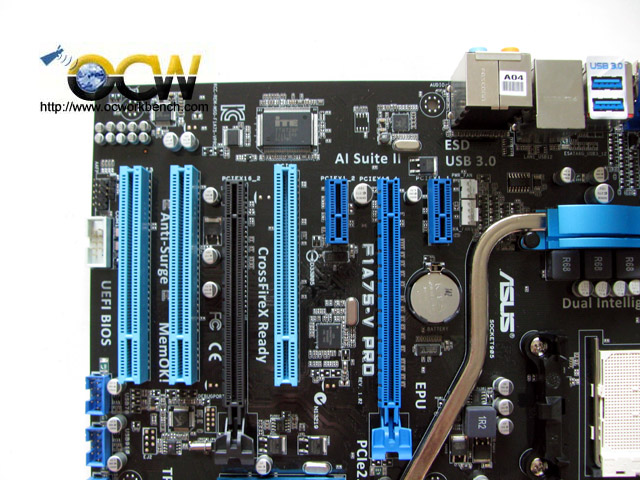

If you do not wish to use the on board graphics controller within the APU, you can connect it to an external graphics card. With two AMD cards, you can run CrossFire X on the board.

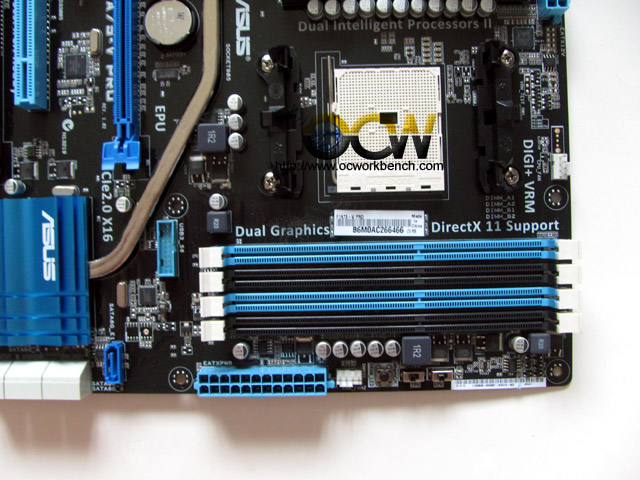

There 4 DIMM memory slots supports up to a max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

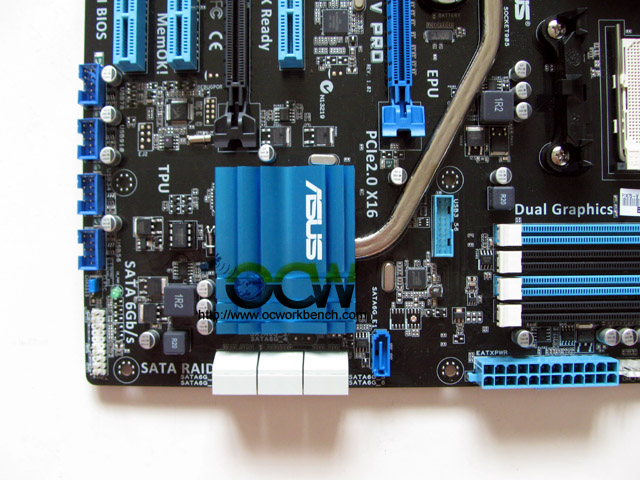

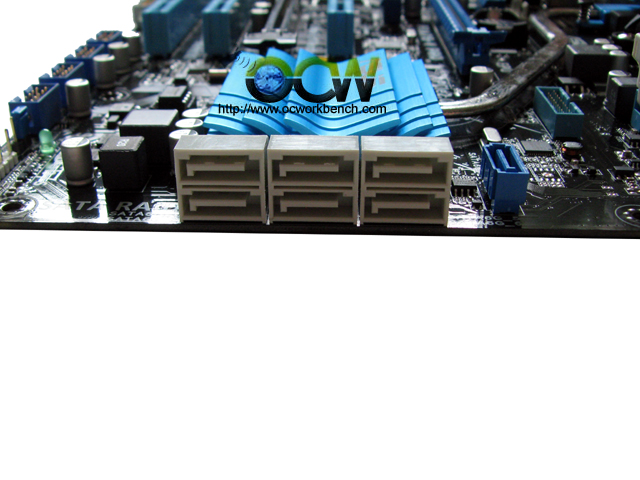

The A75 chipset with 6 SATA 6Gbps ports. The other blue connector SATA 6Gbps port is supported by ASMedia chipset.

Front connecting USB 2.0 ports supported by the A75 chipset.

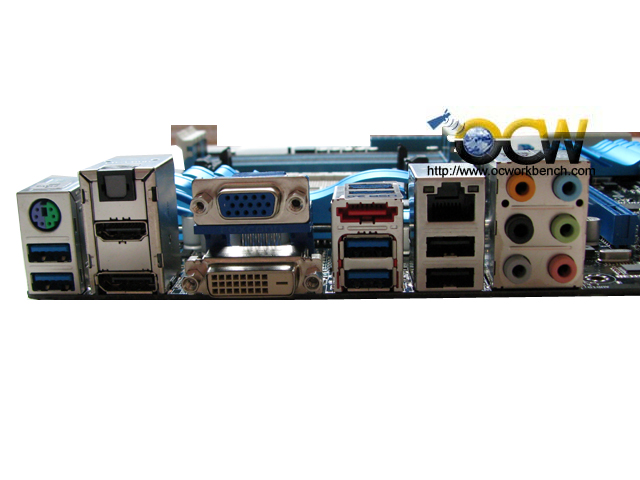

The rear of the board shows 4 USB 3.0 ports, PS/2 Keyboard/mouse, 1 HDMI, 1 Displayport, 1 Optical out, D-Sub, DVI-D, eSATA, GbE, 2 x USB 2.0 and audio ports.
