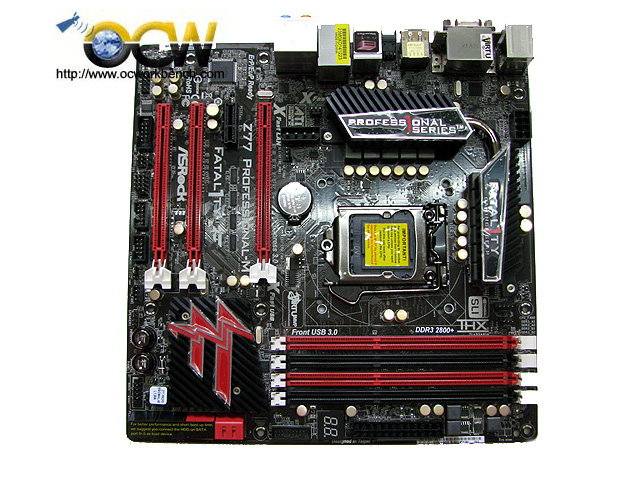

Pictures of ASRock Fatal1ty Z77 Professional-M

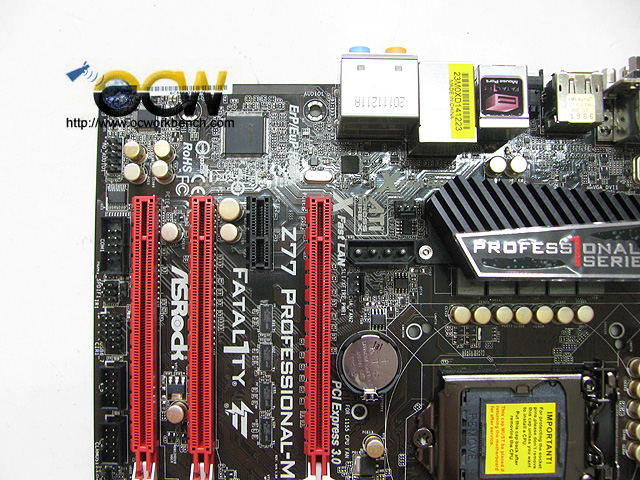

The top left corner of the board consists of  3 full length PCIe 3.0 slots, chipsets for audio, GbE. On the side are the external connectors for USB and COM1.

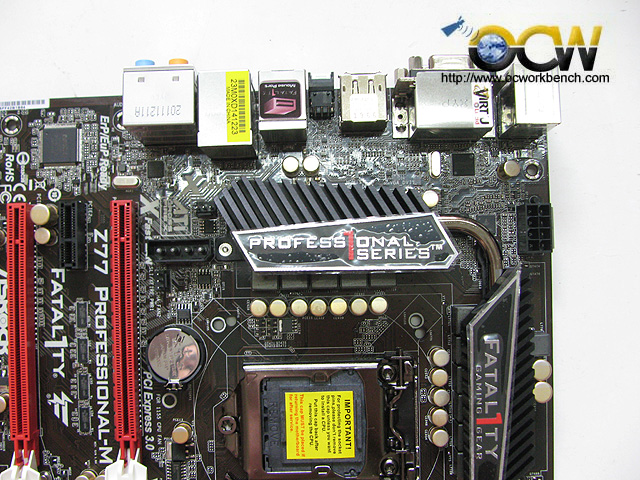

On the right hand side of the board are the components surrounding the processor. See those 8 holes around the CPU socket. One set is for the LGA 1155 while the other set is for the LGA775 old heatsinks that can be mounted on it.

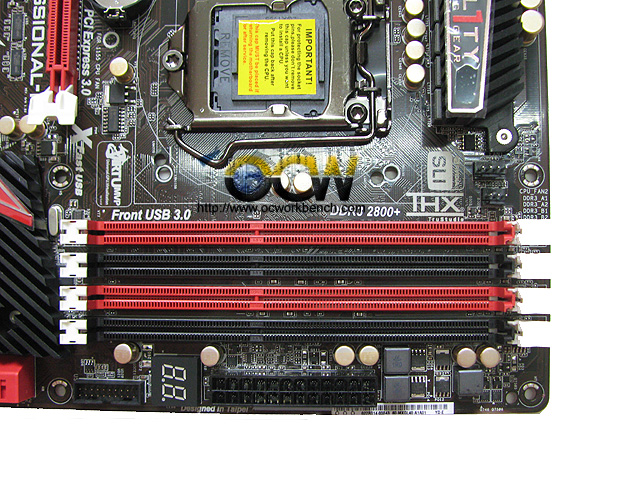

Over here we see the 4 DIMM slots supporting DDR3-2800(OC). There is also the debug LED and power connector.

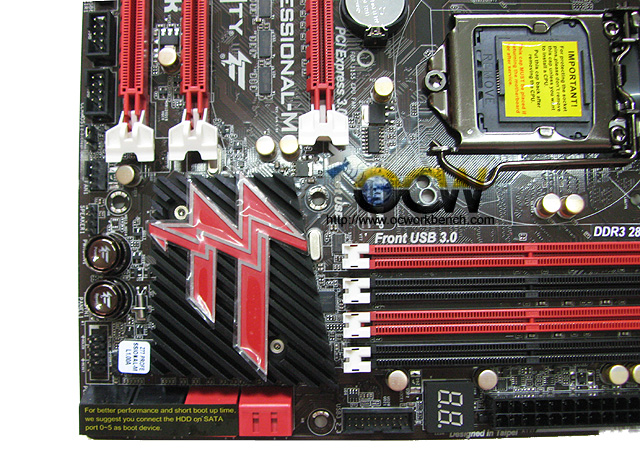

On the left bottom corner, we see the power on and reset switch. Under the heatsink is the chipset. There are also 8 SATA connectors 4 in black and 4 in red.

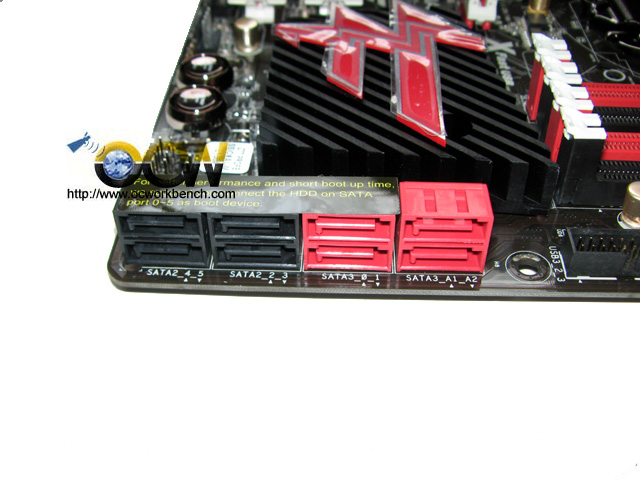

There are 4 SATA 3Gbps and 4 SATA 6Gbps connectors on board.

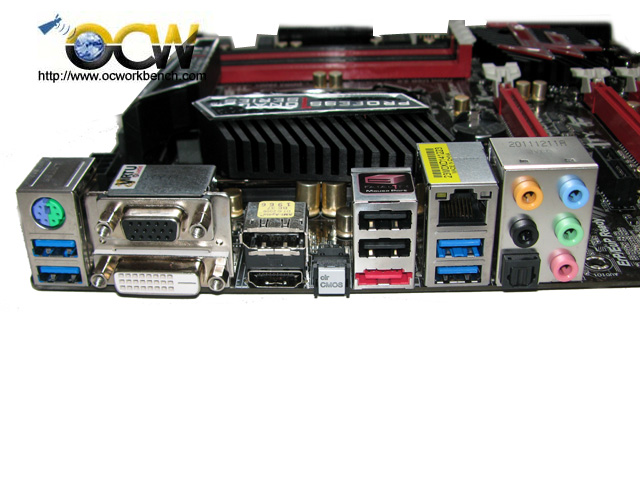

The back panel of the board consists of many connectors. The first from the left is the PS/2 Keyboard/Mouse port. The 2 USB 3.0 ports (in blue) are supported by third party ASmedia chipset. Next to it is the D-SUB and DVI-D ports. Next to it is the Displayport and HDMI. Clear CMOS is right in the middle.

Next is the eSATA port with 2 USB 2.0 ports , one is the Fatal1ty mouse port (on top). Towards the right is the GbE port with 2 USB 3.0 supported by Intel Z77 chipset. Audio ports with SPDIF port are located right next to it.
