MSI X79A-GD45 Intel X79 Mainboard Review
Bluetooth 2 Dec 2011
The MSI X79A-GD45 is the first 4 models of Intel X79 Express chipset mainboard released by MSI in NOV 2011 just in time for the launch of the new Intel LGA2011 processor.
Today, we take a look at the MSI X79A-GD45. The board spots 3 full length Gen 3 PCIe x 16 slots with PCI_E1 & PCI_E4 support up to PCIE x16 speed and PCI_E6 supports up to PCIE x8 speed. It supports both CrossFire X and SLI. There is another 4 PCIe x1 slots. It supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400* (OC) DRAM, 64GB Max.
There a 6 SATA ports on the board which
• SATAII controller integrated in Intel® X79 chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA3~6) by X79
• SATAIII controller integrated in Intel® X79 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by X79
– SATA1~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79
There are 2 USB 3.0 chipset by NEC supporting the internet and rear I/O USB 3.0 ports.
Audio wise, it uses Realtek ALC892 8ch audio chip, It also comes with Realtek 8111E GbE and 1394 by VIA VT6315N.
Specifications are usually quite similar but the features and components used differs from one to another.
The MSI X79A-GD45 uses Military Class III components.In addition to the use of Hi-c CAP, SFC, and Solid CAP, MSI now incorporates DrMOS II, the next-generation DrMOS that provides an integrated Double Thermal Protection to maximize the lifespan of components. All Military Class III components have passed MIL-STD-810G certification, making MSI’s Military Class III components synonymous with premium quality and ultimate stability.
Instead of the boring UEFI BIOS, MSI introduces ClickBIOS II, providing a consistent interface between BIOS and in WIndows with touch screen support.
MSI incorporates a gold-plated layer in the 2-in-1 PS2 and optimized USB ports to 30um to meet the demand of professional gamers. Besides enhancing mouse sensitivity in games, these improved interfaces deliver a longer lifespan and better stability of connectors and total solution for e-sports mouse control in UEFI BIOS.
Other features include SuperCharger, M-Flash, APS (active phase switching), Winki 3, Liveupdate 5, USB Safeguard, Instant OC, 3TB+ Infinity.

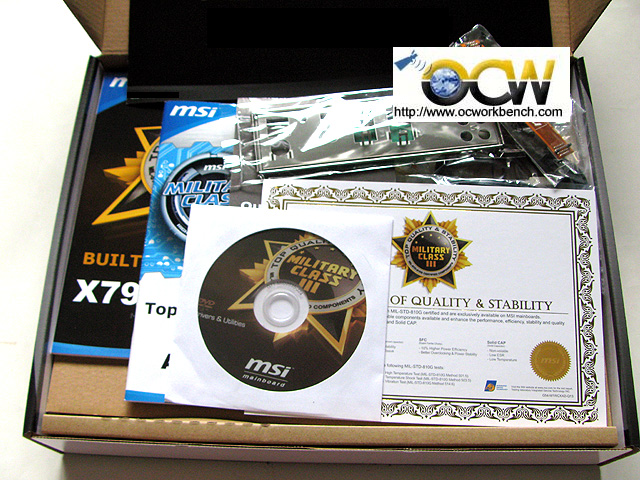

The package also comes with a Overclocking Guide which is very useful even for long time overclockers. It is a must read for everyone.
On the next page, we take a look at the mainboard layout followed by the BIOS.
